Dynamic truck handling with exceptional comfort and control.
Designed to work efficiently within the tight working aisle, the NSP12EAS is capable of lifting up a maximum 4.5 meters in height handling 400 kg load capacities. With its 1.2 Tonnes compact chassis equipped with a low-level centralized position tiller arm, the NSP12EAS is an ideal ergonomic truck solution to meet small to medium size racking demand whereby tight turning can be easily accomplished.
Productivity is optimized for its top travel speed at 5.5 km/hr and it works well even on ramps with its excellent gradeability and electromagnetic brake design. Get your today and experience the exceptional performance for exceptional demands.
Easy Maintenance and Improved Reliability
Removable one piece power head cover allows for easy maintenance.
Robust and maintenance free AC traction motor allows smooth travel transition from point to point.
Plug in diagnostics shorten time required for troubleshooting.
AMP connectors and durable electrical harnesses for greater reliability.
Standard battery discharge indicator (*indicates operating hours, battery level and error codes).
Fully adjustable straddle legs to suit different cargo dimension.
Automatic travel speed reduction when the forks are lifted above the height setting.
Safe hydraulic system design prevents mast from dropping abruptly due to sudden loss of hydraulic pressure or hydraulic leaks.
Anti-roll back system keeps the truck steady on ramp movement and prevents it from rolling backwards.
Automatic lift lock function ensures the mast maintain its original lift position even when there is a sudden disconnection of power supply.
Automatic lift cut off when the remaining power is left with <20% battery charge.
Easy Battery Change
Top loading battery design allows efficient change of battery and easy access to the battery water refilling point.

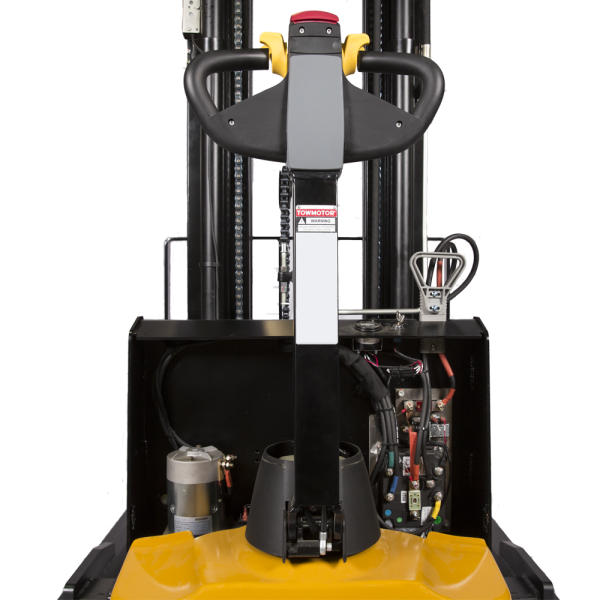

Centralised Tiller Arms & Controls
Standard pin-code entrywith second level password setting limits unauthorize usage of truck.
Multifunctional control handle allows the operator to multitask lifting/lowering of the mast while travelling.
Creep speed mode automatically decreases the truck travel speed when the tiller arm is at near vertical position.
More productivity options:
Enhanced free lifting: free lift up to 1200mm for 2 stage mast.
High capacity battery: 240Ah (4 X 6V maintenance free batteries.
Cold room package: to work in -20 degrees Celsius cold room condition.
